In modern agricultural machinery systems, disc harrow bearings are no longer standard components. They are failure-sensitive elements that directly influence machine uptime, operational stability, and OEM warranty exposure.
For OEM manufacturers, distributors, and procurement engineers, the key challenge is not identifying low price suppliers, but controlling long-term field failure risk under inconsistent agricultural conditions.
Field Failure Mechanism in Agricultural Bearings
Disc harrow bearings operate under combined mechanical and environmental stress that cannot be fully replicated in standard catalog testing.
Operational Stress Factors
- Continuous shock loading from uneven terrain
- Abrasive soil particle intrusion
- Moisture and chemical exposure
- Extended operation without cooling cycles
| Failure Mode | Field Behavior | OEM Impact |
|---|---|---|
| Raceway fatigue | Progressive micro-crack expansion | Unexpected shutdown during season peak |
| Seal degradation | Dust and moisture intrusion | Accelerated maintenance cycle |
| Tolerance drift | Vibration accumulation over time | Warranty claims and replacements |
| Lubrication failure | Thermal grease breakdown | Shortened service interval |

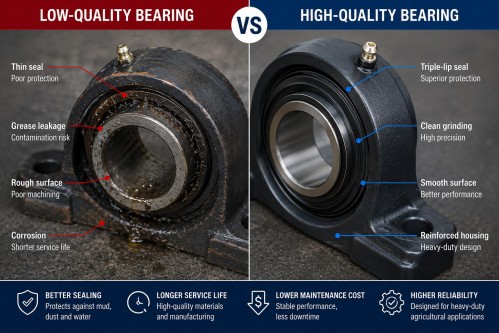

Engineering Differences Between Bearing Grades
| Engineering Factor | Low-Control Production | OEM Controlled Production |
|---|---|---|
| Steel Consistency | Variable hardness distribution | Controlled heat-treatment curve |
| Sealing System | Single-contact seal | Multi-lip / labyrinth design |
| Machining Process | Semi-manual tolerance control | CNC grinding system control |
| Housing Structure | Standard stamping | Reinforced load-bearing design |
| Batch Consistency | High variation | Process-controlled stability |
Root Cause Analysis of Bearing Failure
Material Stability Variation
Inconsistent heat treatment is one of the most common causes of premature raceway fatigue in agricultural applications.
Sealing System Mismatch
Field conditions introduce contamination levels far beyond laboratory assumptions, leading to lubrication breakdown.
Tolerance Accumulation Effect
Small deviations across components accumulate into vibration instability and uneven load distribution.
Field Warning Indicators Observed by OEM Maintenance Teams
- Minor grease leakage at sealing interface
- Noise increase under load
- Coating discoloration during operation
- Resistance inconsistency during rotation
- Early corrosion in storage condition
OEM Inspection Framework Before Procurement
Sealing System Validation
Multi-contact sealing geometry + contamination resistance verification
Material Traceability
Steel composition records + heat treatment consistency + hardness sampling
Dimensional Stability
Bore tolerance + clearance stability + runout under load simulation
Manufacturing Capability
CNC grinding system + batch process control + automation level
Field Validation
Soil, moisture, vibration, and long-duration operation simulation

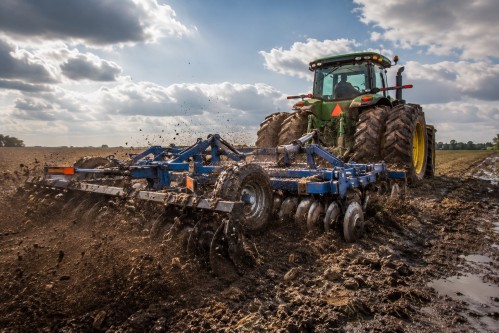

Industry Shift Toward Heavy-Duty Bearing Design
OEM agricultural equipment is moving toward higher power density and longer service cycles. As a result, standard agricultural bearings are increasingly replaced by reinforced heavy-duty designs.
This shift is driven not by specification upgrades, but by field failure cost reduction requirements.
Learn more:Heavy-Duty Disc Bearings for Large-Scale Farming Operations
South American No-Tillage Application Requirements
| Operating Condition | Engineering Requirement |
|---|---|
| High residue soil | Multi-lip sealing system |
| Wet environment | Corrosion-resistant treatment |
| Long working cycles | Stable lubrication retention |
| High vibration load | Reinforced housing structure |
Conclusion: OEM Procurement is a Failure Risk Engineering Decision
Disc harrow bearing selection is no longer a cost-based decision. It is a system-level reliability decision that directly impacts machine lifecycle performance and OEM brand risk exposure.
Procurement decisions should prioritize manufacturing stability, sealing integrity, dimensional control, and verified field performance over unit price comparison.
